Spectral M800 MKII, Tour with Powercon In & Out

Spectral M800 MKII, Tour with Powercon In & Out
Spectral M800 MKII, Tour with Powercon In & Out Spectral M800 MKII, Tour with Powercon In & Out
Brand: Showtec
Product Code: HL43530
Availability: In Stock
Price: £179.00
Qty:     - OR -   Add to Wish List
Add to Compare
The Spectral M800MKII is the upgraded version of the extremely popular Spectral M800.
It now has been upgraded with 3 and 5 pole XLR connections (Tour version only) and 16 bit dimming. The Outdoor versions are available with dedicated IP data connectors and also the new Neutrik NC3-HDD IP XLR connectors.

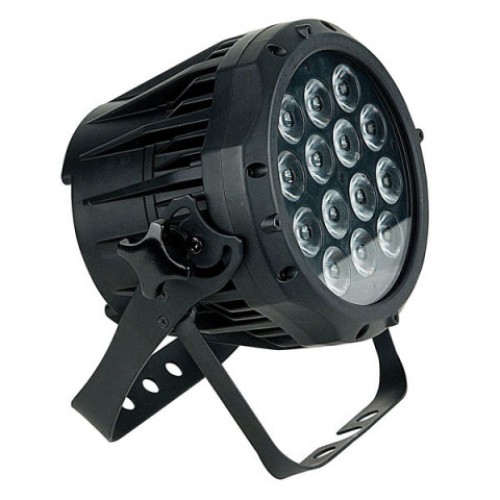

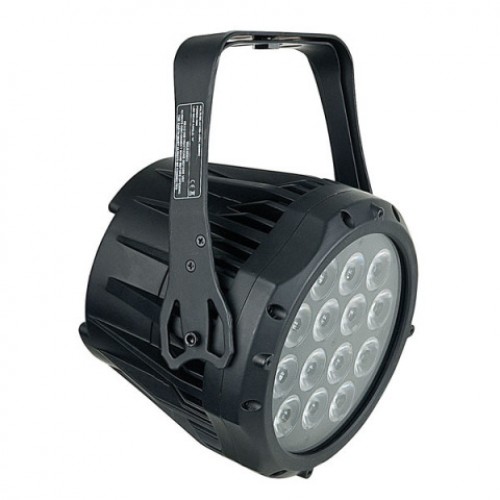

The Spectral M800 MKII is a compact and rugged LED fixture which is designed to provide lighting designers with a tool that is both easy-to-use and 100% reliable in all environments. Offering perfect colour mixing in the near field without any RGB colour shadows, the custom over-sized lenses allow the fixture to capture a greater amount of light and project an output of over 800 lumen.

Specifications

Output:
Max. Flux: 1094lm
Peak Intensity: 10094cd

Light Source:
LED Qty.: 14 x RGB
Drive Current: 350mA
Color Range: 16.7 million additive RGB colors
with full saturation control

Electrical:
Input Voltage: AC100V~240V, 50/60Hz
Max. Power: 50W

Control:
On-board: Display for Auto and Custom control
Control Protocol: DMX512
Control Personality: Tour, TR16, ARC1, AR1.d, AR1.S, HSV
Optical System: Dimmer: 0-100%
Strobe: 0-20Hz
Optics: 16°

Physical:
Dimensions: 250 x 200 x 296 mm
Weight: 4.1 kg (indoor)/ 4.5 kg (outdoor)
Housing: Die-casting aluminum
Color: Black

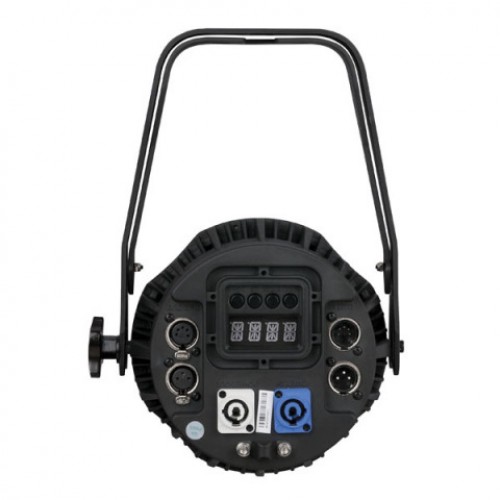

Fixture Connection: XLR (3-pin & 5-pin) DMX in/out,
Powercon power in/out
Cooling: Forced Convection
Operation Temperature: -40°C ~45°C (operating) / -20°C ~45°C (startup)
