Spectral M800 MKII, IP67 with dedicated IP67 connectors

Spectral M800 MKII, IP67 with dedicated IP67 connectors
Spectral M800 MKII, IP67 with dedicated IP67 connectors Spectral M800 MKII, IP67 with dedicated IP67 connectors
Brand: Showtec
Product Code: HL43531
Availability: In Stock
Price: £194.00
Qty:     - OR -   Add to Wish List
Add to Compare
The Spectral M800MKII is the upgraded version of the extremely popular Spectral M800.
It now has been upgraded with 3 and 5 pole XLR connections (Tour version only) and 16 bit dimming. The Outdoor versions are available with dedicated IP data connectors and also the new Neutrik NC3-HDD IP XLR connectors.

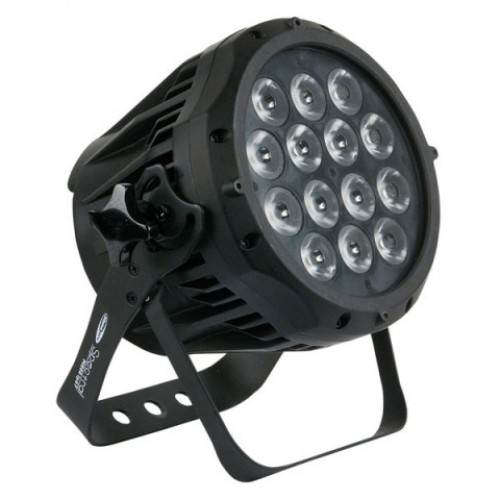

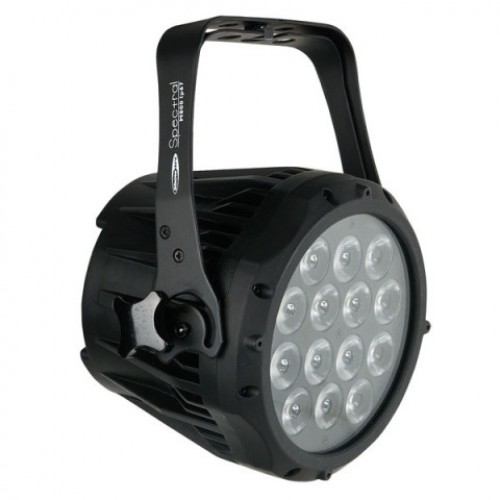

The Spectral M800 MKII is a compact and rugged LED fixture which is designed to provide lighting designers with a tool that is both easy-to-use and 100% reliable in all environments. Offering perfect colour mixing in the near field without any RGB colour shadows, the custom over-sized lenses allow the fixture to capture a greater amount of light and project an output of over 800 lumen.

Specifications

Output:
Max. Flux: 1094lm
Peak Intensity: 10094cd

Light Source:
LED Qty.: 14 x RGB
Drive Current: 350mA
Color Range: 16.7 million additive RGB colors with
full saturation control
Electrical: Input Voltage: AC100V~240V, 50/60Hz
Max. Power: 50W

Control:
On-board: Display for Auto and Custom control
Control Protocol: DMX512
Control Personality: Tour, TR16, ARC1, AR1.d, AR1.S, HSV
Optical System: Dimmer: 0-100%
Strobe: 0-20Hz
Optics: 16°

Physical: Dimensions: 250 x 200 x 296 mm
Weight: 4,1 kg (indoor)/ 4,5 kg (outdoor)
Housing: Die-casting aluminum
Color: Black

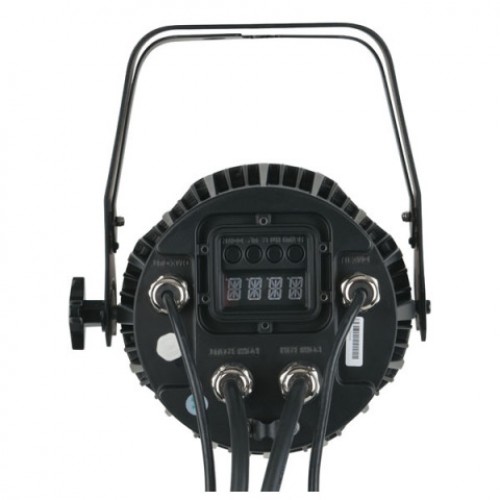

Fixture Connection: DMX dedicated in/out, dedicated power in/out
Cooling: Forced Convection
Operation Temperature: -40°C ~45°C (operating) / -20°C ~45°C (startup)
